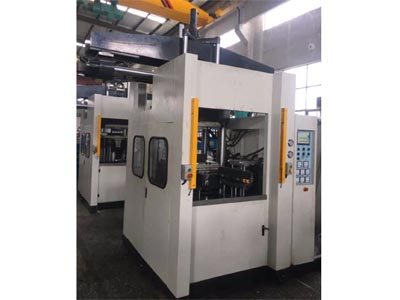

Rubber Molding Machine

Product Details

Mechanical system:
1. Using the finite element analysis, a design precision casting forming, high rigidity, long service life.
2. The deep hole processing, the hot plate drill by thickening and nitriding process, the use of high precision, even the temperature distribution.
3. Numerical control equipment, to ensure accuracy, precision design with key parts for processing.
4. High-end adjustment plane technology, highest can make fluctuation hot plate parallel degree of 0.02mm.

Oil line system:
1. The oil line is integrated design concept, reduce oil route, modular impact and noise.
2. The safe and energy-saving design, improve efficiency, reduce energy consumption.
3. Special design of high speed loop, and makes speed fast acting as smooth transition, and can make any speed adjustment
4. Independent exhaust circuit design, make the exhaust of 100%.
5. Using high quality hydraulic components, stable and reliable.

WH series rubber injection molding machine(rubber machinery) is suitable for injection and molding all kinds of rubber, bakelite, plastic, etc. It is mostly suitable for high quality requirements, complex shape , thick wall and these products with embedded parts.

Features:
1. Injecting rubber after the mould being blocked, high molding pressure in inner cavity of the mould, high density construction of products, précised size with less scurf.
2. High speed open/close molds, high production efficiency, low blocking speed, protect mold.
3. Automatic in/out mold and ejector device, low labor strength.
4. Optional normal valve or proportional valve, matching-advanced oil way, reduce energy consumption.
5. The electric system adopt PLC programming control, which is easy to be operated.

Main parameter:


  Model No.


  CXF-200B


  CXF-300B


  CXF-400B


  Clamping force(Ton)


  200


  300


  400


  Stroke(mm)


  550


  600


  600


  Heating plate size(mm)


  600*600


  700*700


  800*800


  Diameter of cylinder(mm)


  350


  450


  500


  Injection volume(cc)


  2000


  3000


  4000


  Horsepower(HP)


  15*1


  20*1


  25*1


  Type of mold opening


  2RT/3RT/4RT up down in/out-2RT/3RT/4RT


  Single shaft thermal electricity(kw)


  12.6


  16


  25


  Total power(kw)


  28


  36


  45


  Gross weight(kg)


  6000


  9000


  9500


  Machine size(mm)


  3200*2400*2500


  3700*2560*2710


  4000*2800*2850
